[Paper] DropBlock: A Regularization Method for Convolutional Networks (Image Classification)

Outperforms Dropout, DropPath from FractalNet, SpatialDropout, Cutout, AutoAugment, and Label Smoothing from Inception-v3

In this story, DropBlock: A regularization method for convolutional networks (DropBlock), by Google Brain, is shortly presented. In this paper:

• DropBlock, a form of structured Dropout, is proposed where units in a contiguous region of a feature map are dropped together.
• Applying DropBlock in skip connections in addition to the convolution layers increases the accuracy.

This is a paper in 2018 NeurIPS with over 200 citations. (Sik-Ho Tsang @ Medium)

Outline

1. DropBlock
2. Experimental Results

1. DropBlock

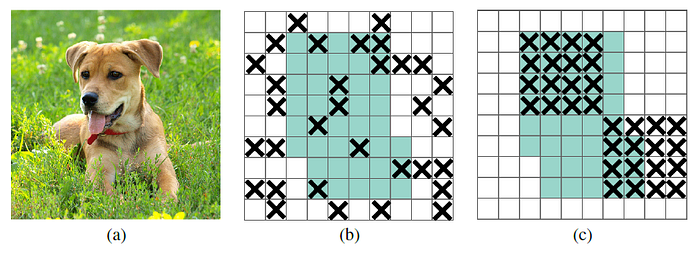

(a) Input Image, (b) Dropout Randomly at Feature Maps, (c) DropBlock at Feature Maps

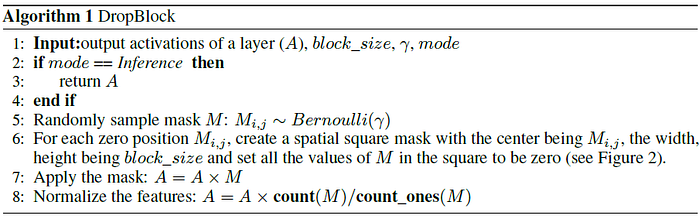

DropBlock Algorithm

• DropBlock has two main parameters which are block_size and γ.

1.1. block_size

• block_size is the size of the block to be dropped.
• DropBlock resembles Dropout when block_size = 1 and resembles SpatialDropout when block_size covers the full feature map.

1.2. γ

• γ controls how many activation units to drop.
• In the paper, γ is computed as

• where keep_prob can be interpreted as the probability of keeping a unit in traditional Dropout.
• The size of valid seed region is (feat_size — block_size + 1)² where feat_size is the size of feature map.
• There will be some overlapped in the dropped blocks, so the above equation is only an approximation.
• In the experiments, authors first estimate the keep_prob to use (between 0.75 and 0.95), and then compute according to the above equation.

1.3. Scheduled DropBlock

• It is found that DropBlock with a fixed keep_prob during training does not work well.
• Applying small value of keep_prob hurts learning at the beginning. Instead, gradually decreasing keep_prob over time from 1 to the target value is more robust.

2. Experimental Results

2.1. Image Classification on ImageNet

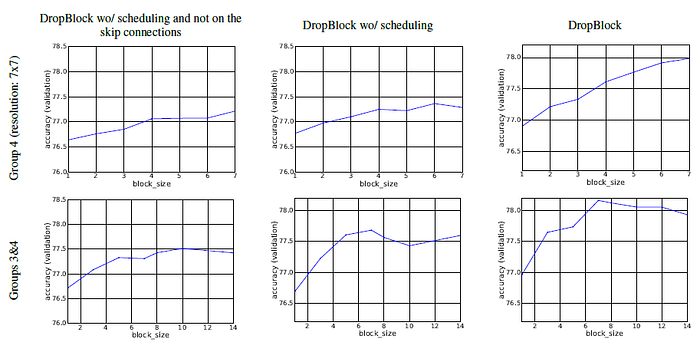

ResNet-50 trained on ImageNet when DropBlock is applied to group 4 or groups 3 and 4.

• A residual network can be represented by building groups based on the spatial resolution of feature activation. A building group consists of multiple building blocks. group 4 represents the last group in residual network (i.e., all layers in conv5_x) and so on.
• Up & Bottom: Applying DropBlock to Group 4 has inferior performance than applying DropBlock to both Groups 3 and 4.
• Left & Middle: Applying DropBlock after both convolution layers and skip connection obtains higher accuracy.
• Bottom Right: The best DropBlock configuration is to apply block_size = 7 to both groups 3 and 4.

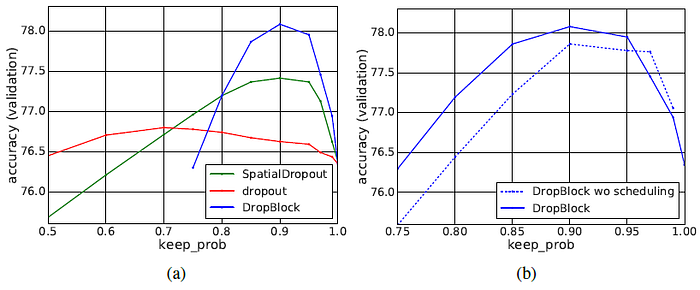

Accuracy Against keep_prob

• Left: Dropblock outperforms SpatialDropout and Dropout.
• Right: The scheduled keep_prob makes DropBlock more robust to the change of keep_prob and adds improvement for the most values of keep_prob.

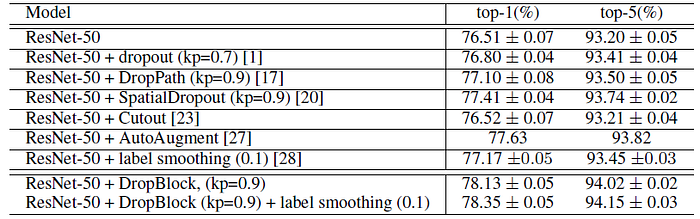

Validation Accuracy on ImageNet (kp is keep_prob)

DropBlock outperforms Dropout, DropPath from FractalNet, SpatialDropout, Cutout, AutoAugment, and label smoothing from Inception-v3.

Top-1 and top-5 validation accuracy on ImageNet

• AmoebaNet-B has Dropout with keep probability of 0.5 but only on the the final softmax layer.
• DropBlock is applied after all batch normalization layers and also in the skip connections of the last 50% of the cells.
• keep_prob of 0.9 and block_size = 11 are used, which is the width of the last feature map.
• DropBlock improves top-1 accuracy of AmoebaNet-B from 82.25% to 82.52%.

2.2. Object Detection on COCO

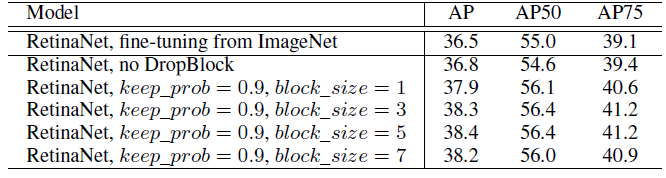

AP on COCO using RetinaNet and ResNet-50 FPN backbone model

• DropBlock with keep_prob = 0.9 is used with different block_size.
• Adding DropBlock gives additional 1.6% AP.
• DropBlock is an effective regularization approach for object detection.

2.3. Semantic Segmentation on PASCAL VOC

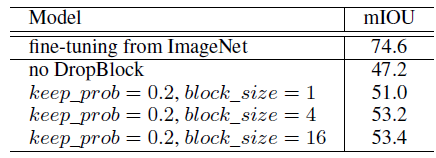

mIOU on PASCAL VOC 2012

• DropBlock is applied to ResNet-FPN backbone model and fully convolution networks.
• Again, applying DropBlock greatly improves mIOU for training model from scratch and shrinks performance gap between the pre-trained model.

Reference

[2018 NeurIPS] [DropBlock]
DropBlock: A regularization method for convolutional networks
